Home  >  HVAC/R Components  >  Contactors  >  MARS 780 Contactors  > 3P 40A 24V BOX LUG TERM

3P 40A 24V BOX LUG TERM

Contactor Type Definite Purpose No. of Poles 3 FLA Inductive 40 FLA Resistive 50 Coil Voltage 24 Coil Hz 50/60 Lug or Screw Terminal Box Lug/Dual QC Standards UL No. of QC Terminals Per Pole 2
Item #: 61445
3P 40A 24V BOX LUG

MARS 780 Professional Grade Definite Purpose Contactors

  • Designed for use on refrigeration, air conditioning and electric heating systems
  • Engineered for today's most demanding commercial refrigeration and HVAC applications
  • Enclosed body provides a quieter running contactor and a longer life expectancy
  • Oversized Arch Window to simplify wiring
  • High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
  • Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires

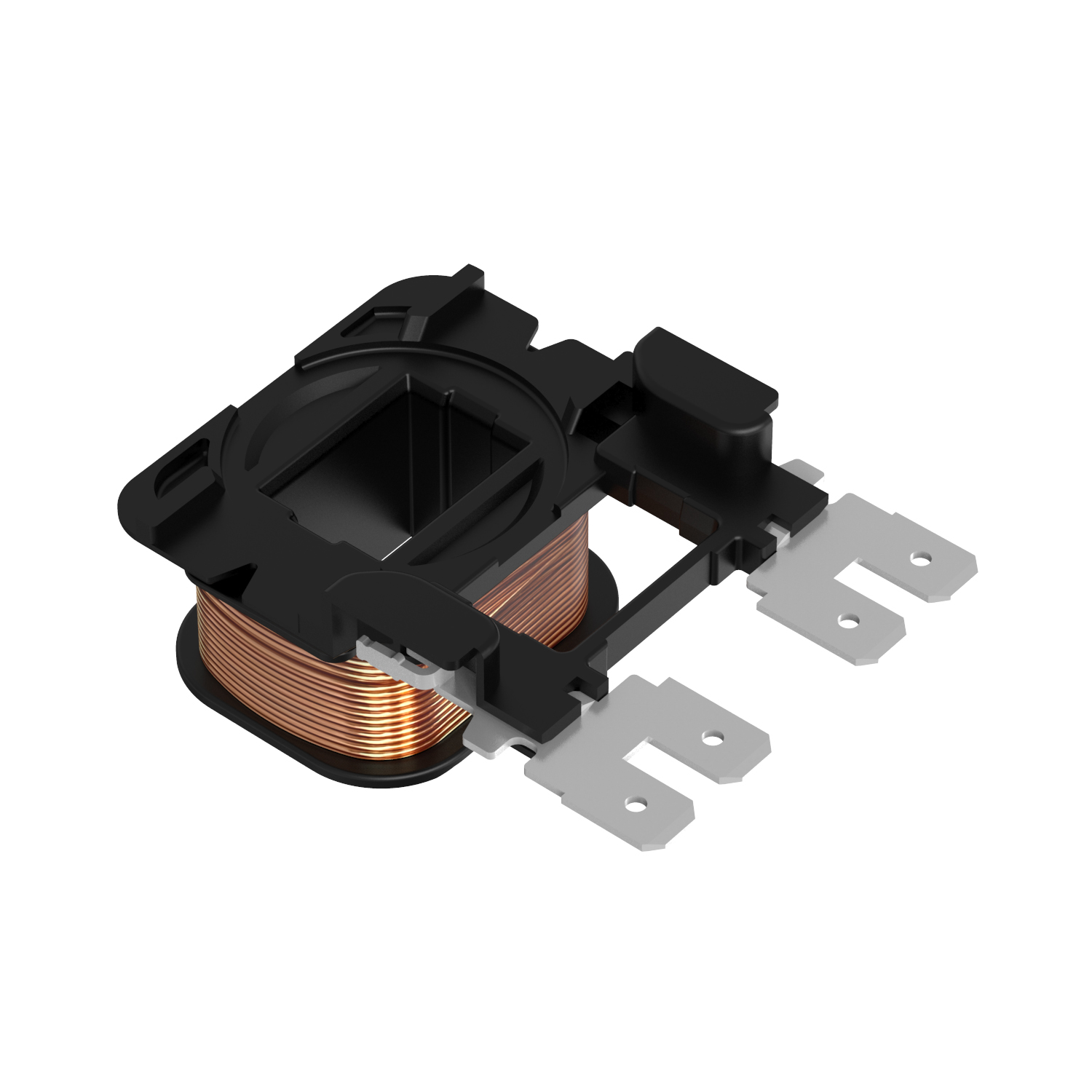

  • Removable Coils allow field replacement of damaged coils
  • Removable Cover provides full access to the contacts
  • Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

Contactors

Contactor Type
Definite Purpose
No. of Poles
3
FLA Inductive
40
FLA Resistive
50
Coil Voltage
24
Coil Hz
50/60
Lug or Screw Terminal
Box Lug/Dual QC
Standards
UL
No. of QC Terminals Per Pole
2
MFG NameMFG #
Siemens/Furnas42CF35AJ

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
MFG NameMFG #
Copeland912304000
Cutler HammerC25DNF340T
DiversitechEC40324
EatonDPE40324
HartlandCON-3/24/40, HCC-3XT04GG
HoneywellDP3040A5002, DP3040A1001
IRPDP34024F, DP34024SF
PackardC3M40A
Packard Titan MaxTMX340A2
Square DDPA43V14,8910DPA43V02
Smart ElectricSE3707M
SUPCODP40243
ZettlerXMC0-403FBBD

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
